About this Guide
This Guide for Fusion 2.5 Android Exporter keeps you frequently updated with the latest instructions on how to build .apk files for your Android device since April 2017.
Everything is included: 64-bit support, fix license errors, support for generating the signed files for your Google Play .apk releases per command line
Android Studio is not required when you follow the instructions below.
(this solution is always conform with the Android Studio solution for the latest Build)
                                                                                                                                                                                                      
Guide Solution A - when you prefer direct download links on this page
Scroll down for the alternative Guide Solution B - when you prefer to download the latest supported packages by yourself with the Android SDK Manager GUI application.
(update: I will soon remove Guide Solution B completely, since old Manager application now slowly retires - it won't support later repository links anymore)
1) A: First step | Downloads
1. Your first task is to manually create a folder called android-sdk and store the .zip files there.
(example location: L:\Clickteam Fusion 2.5\Android\android-sdk)

You can find all the important downloads below(download size ~650 MB in total).

Download Links:

           ojdkbuild .zip (r282) → CLICK[github.com]

           build-tools_r30.0.1-windows.zip: CLICK[dl-ssl.google.com]
           build-tools_r29.0.3-windows.zip: CLICK[dl-ssl.google.com]
           build-tools_r28.0.3-windows.zip: CLICK[dl-ssl.google.com]
            optional, not relevant for up-to-date Fusion 2.5 projects:
           build-tools_r27.0.3-windows.zip: CLICK[dl-ssl.google.com]

           platform-tools_r31.0.1-windows.zip: CLICK[dl-ssl.google.com]

           platform-30_r03.zip: CLICK[dl-ssl.google.com]
           platform-29_r05.zip: CLICK[dl-ssl.google.com]
           platform-28_r06.zip: CLICK[dl-ssl.google.com]
           optional, not relevant for up-to-date Fusion 2.5 projects:
           platform-27_r03.zip: CLICK[dl-ssl.google.com]

           google_play_services_v16_1_rc09.zip: CLICK[dl-ssl.google.com]
                                                                                                                                                                                                           
2) Install OpenJDK
Extract the downloaded archive into a new folder called jdk1.8.0_282
on your hard disk with Windows installed, for example:
C:\Program Files\openjdk\jdk1.8.0_282
                                                                                                                                                                                                                 
3) The Folder/File Setup inside android-sdk folder
a)     This is the android-sdk folder with your downloaded .zip archives:

            

b)     Now arrange everything as shown in this picture: CLICK[dl.dropboxusercontent.com]
         (extract all .zip files and create new folders when necessary
         + don't forget to rename the extracted folders when necessary - you can see this in the above image too)

                                                                                                                                                                                                                 
4) Fusion Settings
         open Clickteam Fusion 2.5 and go to Tools - Preferences - General tab
         and set the right paths for OpenJDK and Android SDK:

             Pathname of the JDK directory:
                   C:\Program Files\openjdk\jdk1.8.0_282\jre
                You can shorten the path a bit if you want and remove the \jre part.

             Pathname of the Android SDK directory:
                   L:\Clickteam Fusion 2.5\Android\android-sdk
                                                                                                                                                                                                                 
5) Build the APK file
         in Fusion create a New Application

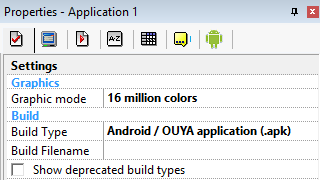

         in Application Settings change Build Type from Windows EXE Application to Android application



         in Android Options choose:
            Build API 30 | Minimum Android version 6.0 | Target Android version 10.0



         build the Android application (apk) file
            File → Build → Application → Save

Fusion 2.5 will now automatically download and install the required gradle files for the first time. (this will take a while)

Depending on your extensions/objects and events, some extra cache files must be updated.
Then a working internet connection is necessary again, if you get a build error otherwise.

There might be an error tellung you about some licenses that were not accepted.
"License for package [...] not accepted."
In this case run the sdkmanager license online updater to quickly verify any missing licenses:
           refresh_android_licenses → CLICK[dl.dropboxusercontent.com]

----------------------------------------------------------------------------------------------------------
END OF GUIDE SOLUTION A - Congratulations! (below you can find the alternative solution B)
----------------------------------------------------------------------------------------------------------
Guide Solution B - when you prefer downloading the latest supported packages by yourself with Android SDK Manager GUI
1) B: First step | Download OpenJDK
1. Your first task is to manually create a folder called android-sdk.
(example location: L:\Clickteam Fusion 2.5\Android\android-sdk)

OpenJDK
           ojdkbuild .zip (r282) → DOWNLOAD[github.com]
On your hard disk with Windows installed, extract the downloaded archive in a new folder called Java and rename the extracted folder to jdk1.8.0_282.
example of correct path: C:\Program Files\Java\jdk1.8.0_282
2) Install packages with SDK Manager GUI
Downloads
           tools_r25.2.5-windows.zip: CLICK[dl.google.com]
           sdk-tools-windows-6858069.zip: CLICK[dl.google.com]
                 (source page: https://developer.android.com/studio#downloads)
           Android SDK Manager.exe: CLICK[dl.dropboxusercontent.com]

Get Android SDK Manager GUI ready:
in android-sdk folder from step 1) extract the 3 .zip files archive by archive in the order how they're listed above(replace existing files when you get a prompt) and then put Android SDK Manager.exe into the folder 'tools'. (if you want, move all .zip archives to a backup location or delete them)

SDK Manager GUI instructions:
         run Android SDK Manager with 'Android SDK Manager.exe'
         and wait until Android SDK Manager is done with loading packages

         hover the mouse over any package with Not installed status to check the download size

         choose latest supported Packages:

             Tools:      Android SDK Tools(already installed)
                                                                                       Android SDK Platform-tools 31.0.1 - and if you can't see it: HERE[dl-ssl.google.com]
                                                                                       Android SDK Build-tools 30.0.1 - and if you can't see it: HERE[dl-ssl.google.com]
                                                                                       Android SDK Build-tools 29.0.3
                                                                                       Android SDK Build-tools 28.0.3
                                                                                       optional, not relevant for up-to-date Fusion 2.5 projects:
                                                                                       Android SDK Build-tools 27.0.3

             Android 11 (API 30):                          - SDK Platform 30 3 - and if you can't see it: HERE[dl-ssl.google.com]
             Android 10 (API 29):                          - SDK Platform 29 5 - and if you can't see it: HERE[dl-ssl.google.com]
             Android 9 (API 28):                             - SDK Platform 28 6
             optional, not relevant for up-to-date Fusion 2.5 projects:
             Android 8.1.0 (API 27):                       - SDK Platform 27 3
             Android 8.0.0 (API 26):                       - SDK Platform 26 2

             Extras:                                                                 Google Play services 49                                                

         click the [Install packages...] button



         click on radio button 'Accept License'

         you can click on any package to check download size (under Archive Description)

         you can click twice on any of the Packages
         and choose if the selected item will we installed or not

         click the [Install] button to install everything
3) Correct folder names in folders build-tools, platforms
Don't forget to correct the names of some folders(in folders 'build-tools' and 'platforms').
Compare and rename the folders with the help of this picture: CLICK[dl.dropboxusercontent.com]
- and
sorry that this image wasn't available for a few days!
(luckily it was still available in solution A above)
4) Fusion Settings
         open Clickteam Fusion 2.5 and go to Tools - Preferences - General tab
         and set the right paths for OpenJDK and Android SDK:

             Pathname of the JDK directory:
                   C:\Program Files\Java\jdk1.8.0_282

             Pathname of the Android SDK directory:
                   L:\Clickteam Fusion 2.5\Android\android-sdk
5) Build the APK file
         in Fusion create a New Application

         in Application Settings change Build Type from Windows EXE Application to Android application



         in Android Options choose:
            Build API 30 | Minimum Android version 6.0 | Target Android version 10.0



         build the Android application (apk) file
            File → Build → Application → Save

Fusion 2.5 will now automatically download and install the required gradle files for the first time. (this will take a while)

Depending on your extensions/objects and events, some extra cache files must be updated.
Then a working internet connection is necessary again, if you get a build error otherwise.

There might be an error tellung you about some licenses that were not accepted.
"License for package [...] not accepted."
In this case run the sdkmanager license online updater to quickly verify any missing licenses:
           refresh_android_licenses → CLICK[dl.dropboxusercontent.com]

----------------------------------------------------------------------------------------------------------
END OF GUIDE SOLUTION B - Congratulations!
----------------------------------------------------------------------------------------------------------
----------------------------------------------------------------------------------------------------------
----------------------------------------------------------------------------------------------------------
< >
